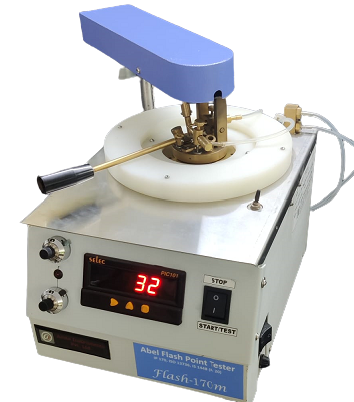

Manual ABEL Flash Point Tester
| Methods | IP 170, ISO 13736 & IS1448 (P:20) |
| Cooling | In-out ports for external water/coolant circulator |
| Heating | Band Heater 300 watts @ 230 VAC |
| Heat Rate | Heat rate control with precise ten turn
potentiometer |
| Stirring | Speed Control by Precise Potentiometer from 0
to 60 rpm |
| Ignition | Gas Igniter – Precise control for pilot flame & gas
igniter |
| Test | Manual dipping, heater and stirrer can be
switched off by using toggle switch. |
| Lid Assembly | Permanently fixed sample cup cover with Stirrer,
sample temperature sensor and Igniter for easy operation |
| Sample Temperature | Glass PT 100 , Class A, with digital indication /
Thermometer interchangeable |
| Stirrer RPM | Chart of Potentiometer position v/s RPM |
| Dimensions | W: 220 mm X D: 300 mm X H: 325 mm |
| Power Supply | 230Volts 50 Hz 600Watts |
| Methods | IP 170, ISO 13736 & IS1448 (P:20) |
| Cooling | In-out ports for external water/coolant circulator |
| Heating | Band Heater 300 watts @ 230 VAC |
| Heat Rate | Heat rate control with precise ten turn
potentiometer |
| Stirring | Speed Control by Precise Potentiometer from 0
to 60 rpm |
| Ignition | Gas Igniter – Precise control for pilot flame & gas
igniter |
| Test | Manual dipping, heater and stirrer can be
switched off by using toggle switch. |
| Lid Assembly | Permanently fixed sample cup cover with Stirrer,
sample temperature sensor and Igniter for easy operation |
| Sample Temperature | Glass PT 100 , Class A, with digital indication /
Thermometer interchangeable |
| Stirrer RPM | Chart of Potentiometer position v/s RPM |
| Dimensions | W: 220 mm X D: 300 mm X H: 325 mm |
| Power Supply | 230Volts 50 Hz 600Watts |
