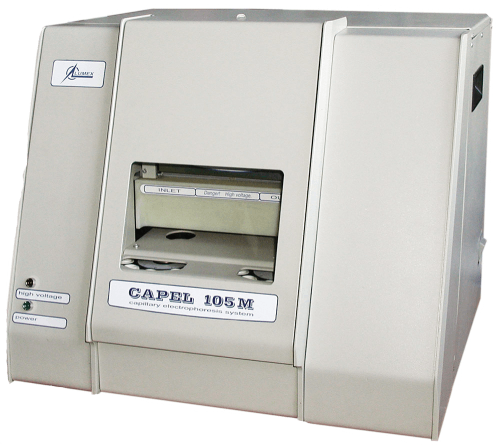

Capel 105M – Capillary Electrophoresis System

Capel-105M

Delivering high performance and flexibility, the Capel-105M Capillary Electrophoresis System provides fast, precise, and cost-effective solutions for analytical tasks in food, environmental, pharmaceutical, chemical, biochemical, and forensic applications. Using the principle of capillary electrophoresis, Capel-105M enables efficient separation of complex mixtures and quantification of multiple components in one run. With short analysis time, powerful software, and precise thermostating, it ensures reliable results for diverse sample types including viscous or complex matrices.

The system combines compact design, intuitive operation, and robust functionality—making it ideal for both research and routine laboratories. Equipped with a deuterium lamp UV detector, programmable injection modes, and liquid-cooling temperature control, Capel-105M offers analytical precision and consistent repeatability for quality control and process testing.

  • Fast, high-resolution separation for various sample types
  • Spectra scanning for easy peak identification
  • Reverse vacuum injection enables ultra-short analysis (under 1 minute)
  • Controlled pressure injection supports viscous samples
  • Accurate thermostating via liquid coolant (±0.1 °C)
  • Programmable pressure, voltage, and wavelength adjustments
  • Low detection limits with an optimized optical system
  • Easy capillary replacement in minutes with cassette design
  • Elforun software: real-time visualization, GLP/GALP compliance, and customized reporting
  • Flexible analytical runs with full method programming capability
Specification Details
Detector Spectrophotometric (190–400 nm)
Light Source Deuterium lamp
Voltage Range ±1–25 kV, 1 kV step
Polarity Switch Automatic electronic
Current 0–200 µA
Pressure Range ±1–99 mbar
Injection Modes By voltage, pressure, or vacuum
Capillary Length 42–100 cm, internal diameter 50 or 75 µm
Temperature Control 10 °C below ambient (min +5 °C) to +50 °C
Rinsing Pressure Up to 1000–2000 mbar
Autosampler 10 inlet and 10 outlet vials
Controlled Parameters Wavelength, pressure, temperature, voltage
Software Elforun software, GLP/GALP compliant
Power Requirements 110/220 VAC, 50/60 Hz
Power Consumption 200 W
Dimensions / Weight 500 × 410 × 365 mm / 25 kg
