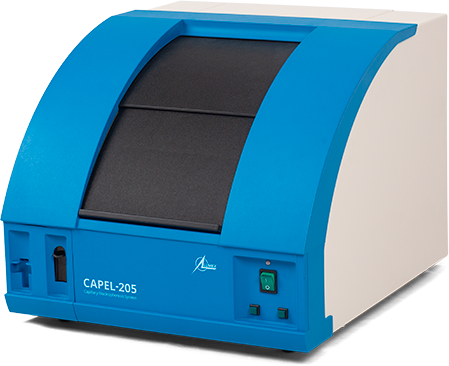

Achieve high-efficiency separation and fast multi-component analysis with the Capel-205 Capillary Electrophoresis System. Designed for precision and versatility, it uses the principle of capillary electrophoresis (CE) to separate and quantify multiple analytes in a single run. With short analysis time, low reagent consumption, and no need for auxiliary equipment, Capel-205 is ideal for laboratories in the food, environmental, pharmaceutical, and chemical industries. The system operates right after installation and delivers accurate results with minimal maintenance. Its autosampler design prevents evaporation and contamination, while optional streaming potential control ensures maximum repeatability.
| Specification | Details |
| Detector | Spectrophotometric |
| Light Source | Deuterium lamp |
| Detection Wavelength | 190–400 nm |
| Voltage Range | ±1–25 (30)* kV, 1 kV step |
| Polarity Switch | Automatic electronic |
| Current | 0–300 µA |
| Pressure Range | Up to 100 mbar; rinsing 500–2000 mbar |
| Injection Types | By voltage (±1–25 kV) or pressure (–100 to 100 mbar) |
| Capillary Length | 40–120 cm (50 or 75 µm ID) |
| Temperature Control | From 10 °C below ambient (min +5 °C) to +50 °C |
| Autosampler | 59 vials, 1.5 mL each |
| Controlled Parameters | Wavelength, pressure, temperature, voltage |
| Software | Elforun software, 21 CFR Part 11 compliant |
| Streaming Potential Control | Optional |
| Power Supply | 110–240 VAC, 50/60 Hz |
| Power Consumption | 170 W |
| Dimensions / Weight | 470 × 530 × 410 mm / 30 kg |
