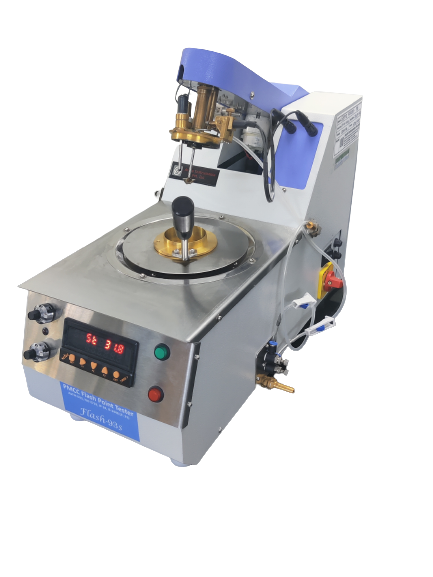

The Flash-93S is a semi-automatic Pensky-Martens Closed Cup (PMCC) flash point tester, designed for accurate determination of the flash point of petroleum products and biodiesel. It operates within a temperature range of 40°C to 360°C for petroleum products and 60°C to 190°C for biodiesel, adhering to international standards.
| Specification | Details |
| Model | Flash-93S |
| Test Methods | ASTM D93 (A/B/C), ISO 2719 (A/B/C), JIS K2265, IP-34 (A/B/C), IS1448 [P:21] |
| Temperature Range | 40°C to 360°C (Petroleum Products), 60°C to 190°C (Biodiesel) |
| Heating Control | Ten-turn potentiometer |
| Ignition System | Electric (auto on/off) and Gas (manual on/off) |
| Cooling System | Inbuilt centrifugal blower |
| Sample Temperature Indicator | Digital display with heating rate and stirrer RPM |
| Test Components | Fixed sample cup lid, stirrer, sample temperature sensor, flash detector, igniter |
| Test Operation | Automatic within specified temperature range; manual single-push switch |
| Safety Features | Automatic stopping of stirring and heating; cooling activation upon flash detection |
| Dimensions (W x D x H) | 410 mm x 420 mm x 330 mm |
| Weight | 16 kg |
| Power Supply | 230V, 50Hz |
| Material | Stainless Steel |
| Ambient Temperature Range | 10°C to 35°C |
