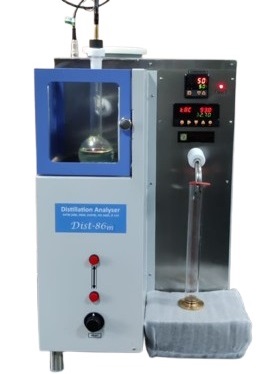

Manual Atmospheric Distillation Analyser – Dist 86M

The Dist‑86M Manual Atmospheric Distillation Analyser offers precise and reliable distillation of petroleum products at atmospheric pressure. Engineered for laboratories requiring manual control, this analyser ensures accurate boiling range determination of samples like naphtha, ATF, kerosene, diesel, and gasoline. Its robust design features low‑voltage heating, a water circulation system, and a motorized flask lift, facilitating smooth and consistent operations. Compliant with ASTM, ISO, and IP standards, the Dist‑86M is an essential tool for quality control and research applications. Share your sample specifications and testing requirements with us, and our team will assist in configuring the ideal setup for your needs.

Low‑Voltage Long‑Life Heating Coil: Ensures consistent heating with precise power adjustment via potentiometer.
Inbuilt Water Circulation System: Maintains optimal condenser temperature for accurate results.
PID Temperature Control: Allows precise temperature regulation for both condenser (0–80 °C) and receiver.
Motorized Flask Lifting Device: Facilitates smooth and safe handling of distillation flasks.
Schott Glass Flask Supports: Durable and resistant to thermal shock.
Class A PT100 Vapor Sensor: Provides accurate vapor temperature readings with digital indicator.
Teflon Centering Devices: Ensure proper alignment of thermometers for precise measurements.
Compliance with International Standards: Meets ASTM D86 (Groups 0–4), ASTM D850, ASTM D1078, EN ISO 3405, IP 123, and IP 195.
Temperature Range: 0 °C to 450 °C, suitable for a wide range of samples.
Compact and Durable Design: Dimensions: 50 × 65 × 65 cm; Weight: 40 kg.

Specification	Details
Model	Dist‑86M
Standard Methods	ASTM D86 (Groups 0–4), ASTM D850, ASTM D1078, EN ISO 3405, IP 123, IP 195
Temperature Range	0 °C to 450 °C
Suitable Samples	Naphtha, ATF, Kerosene, Diesel, Gasoline
Heating Coil	Low‑voltage, long‑life with potentiometer control
Water Circulation	Inbuilt system with temperature indication
Temperature Control	PID control for condenser and receiver
Vapor Sensor	Class A PT100 with digital indicator
Flask Supports	Schott glass, long‑lasting with heating plates
Motorized Lift	Smooth operation for flask handling
Dimensions	50 × 65 × 65 cm
Weight	40 kg
Power Supply	230V, 50Hz, 800W
