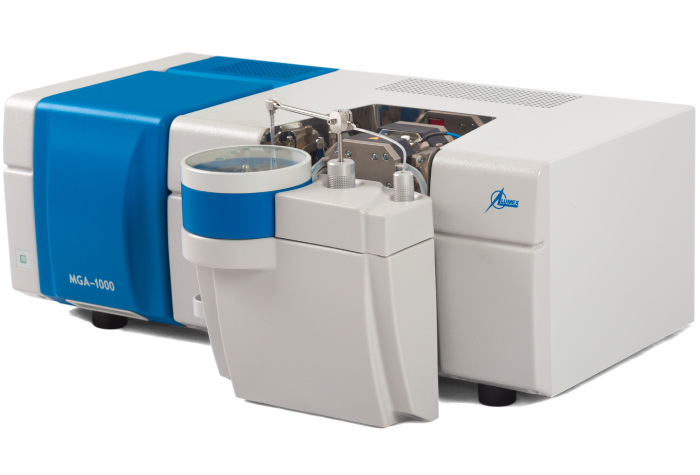

MGA 1000 – Atomic Absorption Spectrometer

Elevate elemental analysis with the MGA-1000 Atomic Absorption Spectrometer, a high-performance graphite furnace system utilizing the Zeeman High Frequency Polarization Modulation (ZHFPM) technique for precise determination of trace and macro elements in water, soil, food, feed, pharmaceuticals, and biological samples. Designed for outstanding accuracy and sensitivity, it integrates advanced background correction with a stable graphite furnace, allowing direct analysis of complex, high-salinity, or organic samples. The stabilized temperature platform furnace (STPF) and quasi-double beam optics ensure consistent, drift-free results with low detection limits and no warm-up required. Compact, quiet, and energy-efficient, the MGA-1000 delivers laboratory-grade precision for environmental, food, and pharmaceutical testing.

Graphite furnace atomic absorption with high selectivity and sensitivity
Innovative ZHFPM background correction across the full spectral range
Simultaneous total and background absorption measurement
Direct analysis of complex samples: blood, brines, food, and soil digests
47-position autosampler with sealed vials for contamination-free automation
STPF furnace design ensures temperature stability and repeatable results
No need for flammable gases or compressors—argon only operation
Long-life graphite tubes (Massman or L’vov types) with up to 800 analyses per tube
Six-lamp turret for hollow cathode or electrodeless discharge lamps
Optional cold vapor/hydride generation for mercury and trace element detection
Compact build, low noise, and minimal energy use

Specification	Details
Wavelength Range	185–900 nm
Max Furnace Temperature	3000 °C
Furnace Heating Rate	Up to 4500 K/s
Background Correction	Zeeman modulation of light polarization
Lamp Turret	6-lamp revolver (Hollow Cathode and EDL)
Argon Flow Rate	< 2 L/min (high purity)
Tube Lifetime	Up to 800 analysis cycles
Autosampler Capacity	47 positions
Cooling System	Closed-loop water cooling
Power Supply	220/380 VAC or 120/208 VAC, 50/60 Hz
Power Consumption	0.1 kW (standby), 6 kW (atomization)
Dimensions / Weight	800 × 475 × 310 mm / 50 kg
