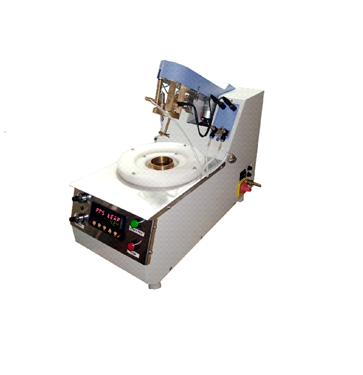

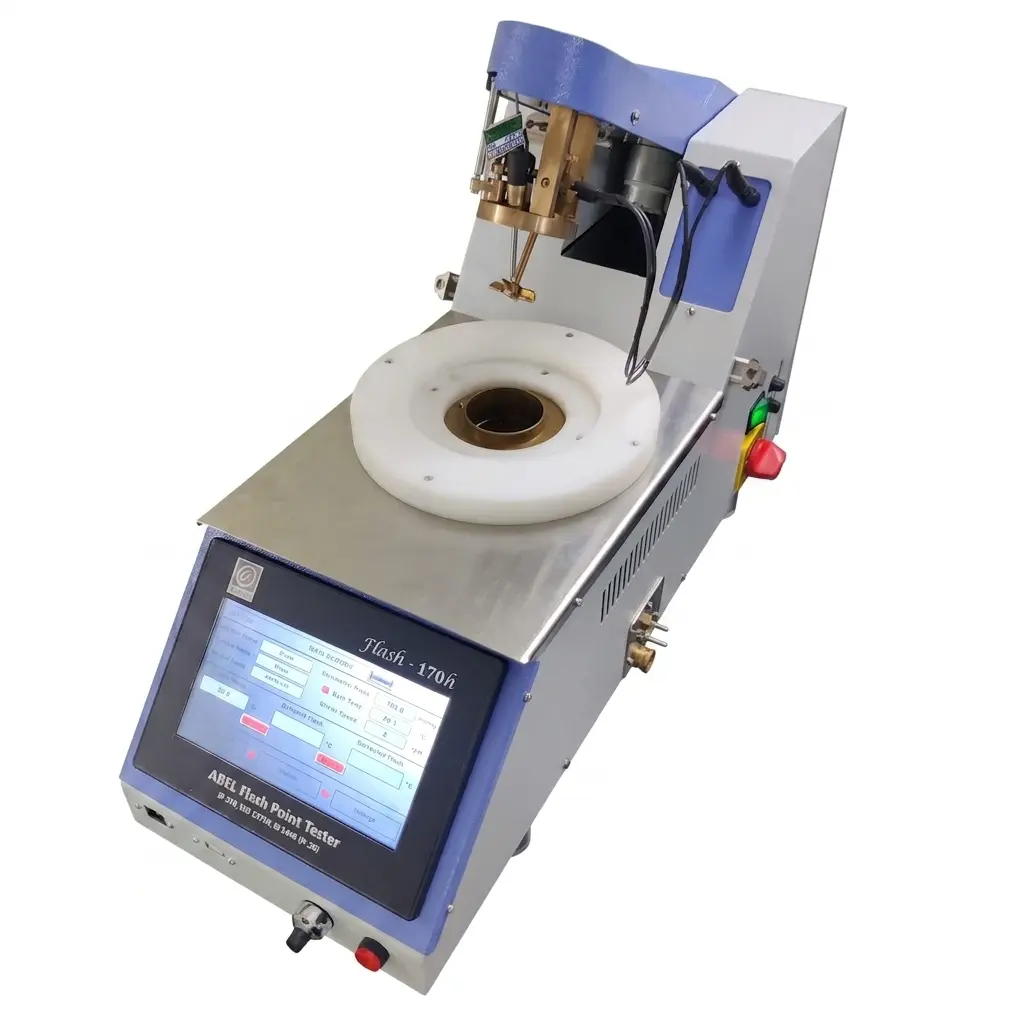

Automatic Abel Flash Point Tester – AutoFlash 170H

M3cu

The AutoFlash-170H is an advanced automatic Abel Closed Cup Flash Point Tester, designed to determine the flash point of combustible liquids with high accuracy and safety. It operates within a temperature range of -30°C to 110°C, adhering to international standards such as ISO 13736 and IP 170. This tester is ideal for laboratories requiring precise flash point determination of flammable liquids.

Download Brochure
  • Microcontroller-Based System: Ensures precise control and automation of the testing process.
  • Touch Screen Interface: User-friendly interface for easy operation and monitoring.
  • Connectivity Options: RS232, USB, and LAN Ethernet ports for seamless data transfer.
  • Barometric Pressure Compensation: Automatic correction for barometric pressure variations to ensure accurate results.
  • Fire Extinguishing System: Equipped with a fire sensor and inert gas connection (CO₂ or N₂) for enhanced safety.
  • Automated Arm Movements: Includes fixed sample cup lid, stirrer, sample temperature sensor, flash detector, and igniter for easy operation.
  • Cooling System: Inbuilt air-cooled Peltier or external water circulator for efficient cooling during tests.
  • Safety Interlocks: Various interlocks to ensure safe operation.
  • Data Storage and Reporting: Methods and results storage facility with options for result printing or PDF generation.
Specification Details
Model AutoFlash-170H
Test Methods ISO 13736, IP 170
Temperature Range -30°C to 110°C (with external refrigerated circulator)
Cooling System Inbuilt air-cooled Peltier or external water circulator
Connectivity RS232, USB, LAN Ethernet
Fire Extinguishing System Inert gas connection (CO₂ or N₂) with fire sensor
Safety Features Various interlocks for secure operation
Data Management Methods and results storage, result printing or PDF generation
Dimensions (W x D x H) 410 mm x 420 mm x 330 mm
Weight 17 kg
Power Supply 230V, 50Hz
Material Stainless Steel
Ambient Temperature Range 10°C to 35°C
