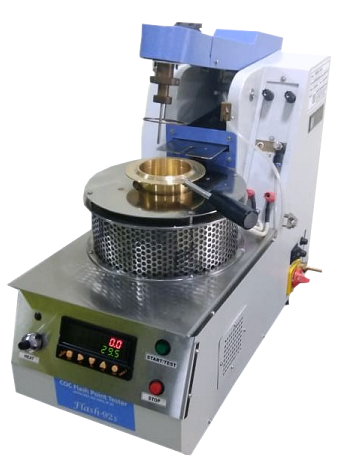

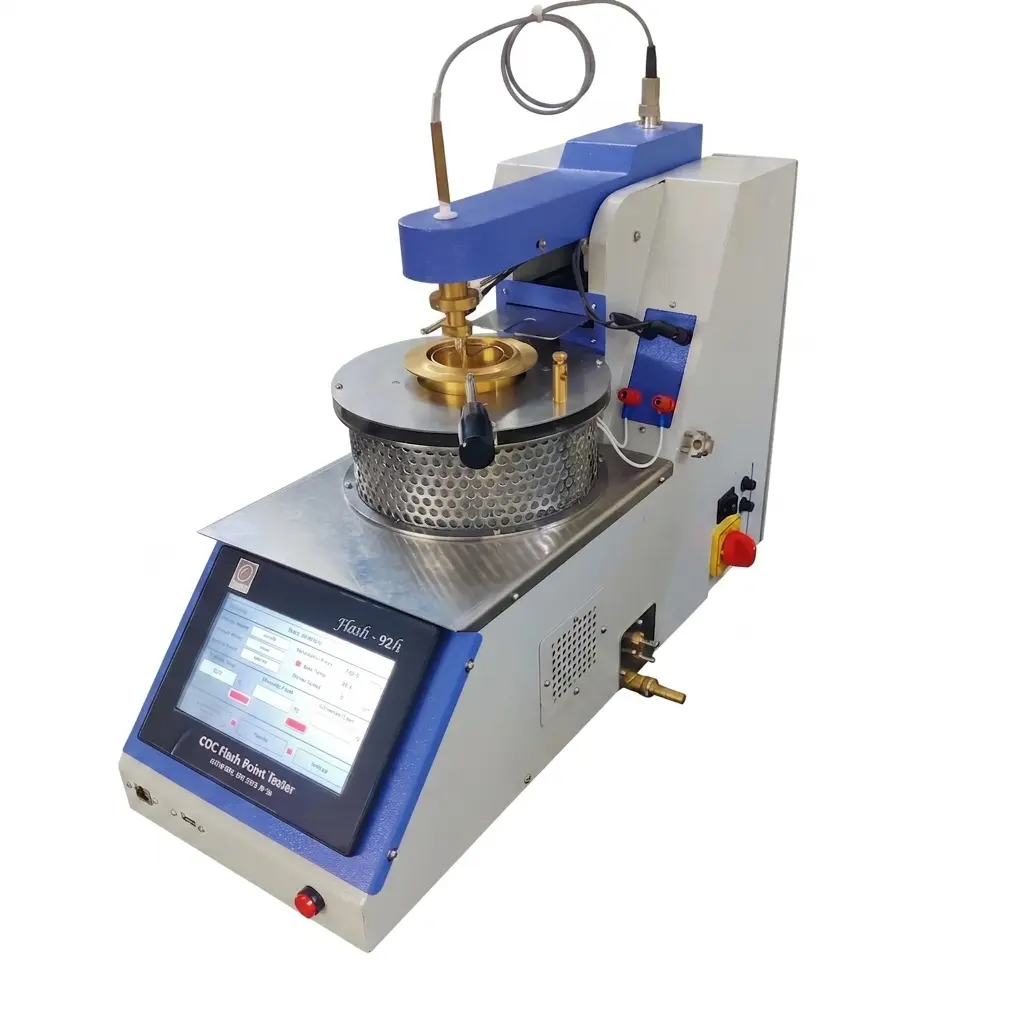

Automated Cleveland Open Cup Flash Point Tester – Flash 92H

jBbA

The Flash-92H is an advanced automated Cleveland Open Cup Flash Point Tester designed to determine the flash point of combustible liquids with high accuracy and safety. Operating within a temperature range of +79°C to +400°C, it adheres to international standards such as ASTM D92, ISO 2592, IP 36, and GB/T 3536. This tester is ideal for laboratories requiring precise flash point determination of petroleum products, lubricating oils, bitumen, and edible oils.

Download Brochure
  • Microcontroller-Based System: Ensures precise control and automation of the testing process.
  • Touch Screen Interface: User-friendly interface for easy operation and monitoring.
  • Connectivity Options: RS232, USB, and LAN Ethernet ports for seamless data transfer.
  • Barometric Pressure Compensation: Automatic correction for barometric pressure variations to ensure accurate results.
  • Fire Extinguishing System: Equipped with a fire sensor and inert gas connection (CO₂ or N₂) for enhanced safety.
  • Automated Arm Movements: Includes fixed sample cup lid, stirrer, sample temperature sensor, flash detector, and igniter for easy operation.
  • Cooling System: Inbuilt centrifugal cooling blower for efficient cooling during tests.
  • Safety Interlocks: Various interlocks to ensure safe operation.
  • Data Storage and Reporting: Methods and results storage facility with options for result printing or PDF generation.
Specification Details
Model Flash-92H
Test Methods ASTM D92, ISO 2592, IP 36, GB/T 3536
Temperature Range +79°C to +400°C
Cooling System Inbuilt centrifugal cooling blower
Connectivity RS232, USB, LAN Ethernet
Fire Extinguishing System Inert gas connection (CO₂ or N₂) with fire sensor
Safety Features Various interlocks for secure operation
Data Management Methods and results storage, result printing or PDF generation
Dimensions (W x D x H) 410 mm x 420 mm x 330 mm
Weight 20 kg
Power Supply 230V, 50Hz
Material Stainless Steel
Ambient Temperature Range 10°C to 35°C
