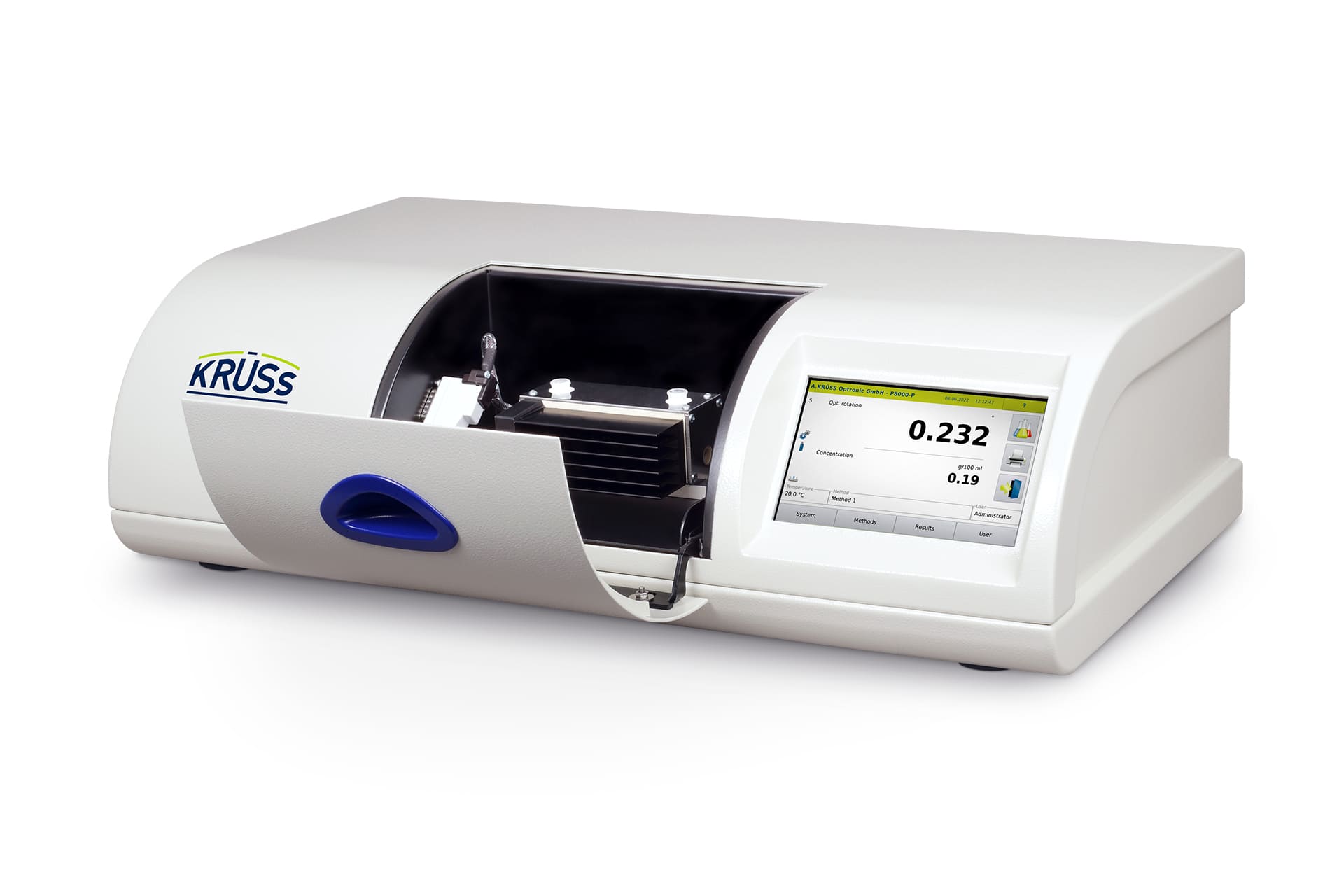

The Polarimeter P8000-P enables ultra-fast, high-precision measurement of optically active samples, with advanced Peltier temperature control for direct, homogeneous sample temperature regulation. It offers a measurement range of ±90° to ±259°Z, rapid 1–2 second measurement periods, and outstanding accuracy to ±0.003° for optical rotation and ±0.01°Z for the sugar scale. The instrument maintains reliability even at high optical density (up to OD 3.0) and supports tubes up to 220 mm, making it ideal for challenging applications in pharmaceuticals, chemicals, food, and beverage industries. User-friendly features include a 7-inch touchscreen display, smart audit trail, multi-level user access, and pre-installed measurement scales (optical rotation, sugar, specific rotation, concentration), all customizable as needed. The P8000-P’s robust construction features borosilicate sample contact parts, long-life (100,000-hour) LED, seamless temperature compensation, and regulatory compliance with GMP/GLP, 21 CFR Part 11, FDA, and ISO, plus convenient LIMS, USB, RS-232, and other connectivity options.
| Specification | Details |
| Measurement Scales | Optical/specific rotation, sugar scale, concentration, unlimited custom scales |
| Measurement Range | ±90°, ±259°Z |
| Accuracy | ±0.003° (optical), ±0.01°Z (sugar) |
| Resolution | 0.001°, 0.01°Z |
| Measurement Period | 1–2 seconds |
| Wavelength | 589 nm |
| Max Tube Length | 220 mm |
| Temperature Control Range | 15–40 °C |
| Temp Control Accuracy | ±0.2 °C |
| Temp Measurement Accuracy | ±0.1 °C |
| Sample Contact Parts | Borosilicate glass |
| Electrical/Power | 110–250 VAC, 50/60 Hz, 65–85 W |
| Interfaces | USB, RS-232, Ethernet, LIMS |
| Operation | 7″ touchscreen, keyboard, mouse, barcode scanner |
| Dimensions/Weight | 670 × 200 × 360 mm / 29 kg |
