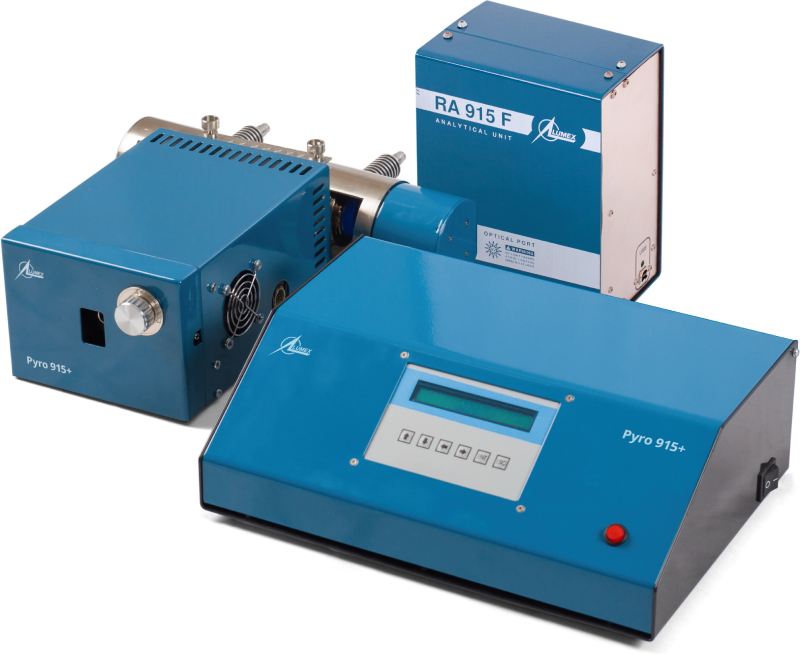

RA-915 F Field Mercury Analyser with Direct Thermal Decomposition

Achieve accurate, reliable and cost-effective mercury measurements with the RA-915 F Field Mercury Analyser—designed for direct thermal decomposition across the broadest range of sample matrices. This compact three-unit system analyzes complex samples ‘as is’ without pre-treatment, combining atomic absorption spectrometry with programmable thermal release for interference-free results. Ideal for environmental field surveys, mine site monitoring, petroleum testing and rapid contamination assessment. The real-time feedback system handles soils, water, crude oil, coal and biological tissues with ppb-level sensitivity in 1–5 minute cycles. No wet chemistry, compressed gases or gold traps needed—air carrier operation reduces complexity and field deployment costs. The modular design fits mobile laboratories and remote testing stations. Fast warm-up and zero memory effect enable high-throughput screening. Universal power and lightweight construction support generator or battery operation in any location. Share your field testing requirements—our team will configure the RA-915 F with sample boats and methods for your on-site mercury analysis program.

Direct thermal decomposition—no digestion, reagents or wet chemistry required
Atomic absorption spectrometry at 254 nm with Zeeman background correction
Ultra-low detection limit: 0.5 ppb (μg/kg) for most solid matrices
Wide dynamic range: 0 – 200,000 ppb (μg/kg) spanning 5+ orders of magnitude
Real-time feedback system for sample decomposition control eliminates matrix interferences
Sample boat capacity: 1,000/2,000 mg (solids) or 500/1,000 µL (liquids)
Rapid analysis: 1–5 minutes per sample from injection to result
Fast warm-up: ready for analysis in 40 minutes or less
Programmable furnace (150–800 °C) for optimal decomposition and thermospeciation studies
Air as carrier gas—no compressed oxygen or argon required for safe field operation
No gold trap pre-concentration increases analysis speed and reduces complexity
Zero memory effect—analyze low-concentration samples immediately after high concentrations
Universal power supply: 100–240 VAC, 50–60 Hz for global field deployment
Low power consumption: maximum 700 W for battery or generator compatibility
Compact modular design: spectrometer, thermal unit and power supply for mobile labs
Lightweight construction: 21.5 kg total weight for field portability

Specification	Details
Measurement Principle	Direct thermal decomposition with atomic absorption at 254 nm and Zeeman correction
Detection Limit	0.5 ppb (μg/kg)
Measurement Range	0 – 200,000 ppb (μg/kg)
Sample Boat Capacity	1,000/2,000 mg or 500/1,000 µL
Analysis Time	1 – 5 min
Warm-up Time	≤40 min
Temperature Range	150 – 800 °C (atomizer and analytical cell)
Power Supply	100 – 240 VAC, 50 – 60 Hz
Power Consumption	Max. 700 W
Dimensions (W×D×H)	175×110×235 mm (spectrometer)<br>430×340×135 mm (thermal unit)<br>400×280×135 mm (power supply)
Weight	21.5 kg (complete system)

RA-915 F Field Mercury Analyser with Direct Thermal Decomposition
