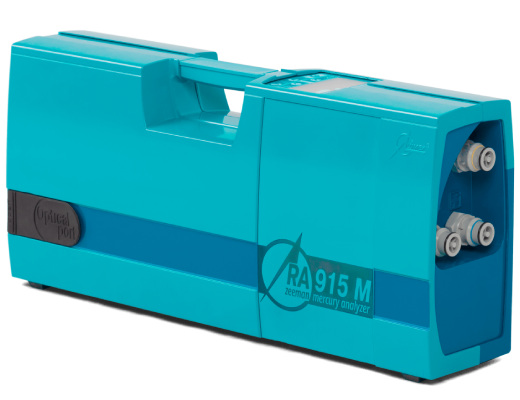

RA-915 M Portable Mercury Vapour Analyser

RA-915M

Monitor mercury vapour in real-time with the RA-915 M Portable Mercury Analyser, designed for field measurements and workplace safety monitoring. This compact atomic absorption system delivers instant 1-second response with Zeeman background correction—enabling continuous ambient air surveillance without sample collection. Ideal for industrial hygiene, environmental monitoring and hazardous site assessment. The 8-hour battery supports all-day fieldwork, while 122-hour data logging captures extended trends. Ultra-sensitive detection down to 0.5 ng/m³ ensures regulatory compliance and worker protection. Dual measurement ranges handle both trace ambient levels and high-concentration zones. Lightweight construction and universal power make the RA-915 M ready for laboratory verification, perimeter monitoring or emergency response. Share your monitoring application—our team will configure the RA-915 M with accessories matched to your mercury surveillance needs.

  • Atomic absorption spectrometry at 254 nm with Zeeman background correction
  • Ultra-low detection limit: 0.5 ng/m³ for trace ambient monitoring
  • Dual measurement ranges: 0–20,000 ng/m³ and 0–2,000,000 ng/m³
  • Real-time direct measurement with 1-second response time
  • No sample preparation—continuous air monitoring
  • Built-in data logger with 122 hours of storage capacity
  • 8-hour rechargeable battery for full-shift portable operation
  • Universal power supply: 100–240 VAC, 50/60 Hz
  • Low power consumption: maximum 35 W
  • Compact portable design: 470×110×220 mm, only 7 kg
  • Instant startup with no warm-up delay
  • Real-time trend display and alarm thresholds for safety monitoring
  • Exportable data logs for compliance reporting
  • Rugged construction for industrial and outdoor environments
  • Handheld or tripod-mountable for stationary and mobile measurements
Specification Details
Measurement Principle Atomic absorption spectrometry at 254 nm with Zeeman correction
Detection Limit 0.5 ng/m³
Measurement Ranges 0 – 20,000 ng/m³ / 0 – 2,000,000 ng/m³
Response Time 1 second (real-time)
Data Logger 122 hours storage
Battery Life 8 hours continuous
Power Supply Battery or 100 – 240 VAC, 50/60 Hz
Power Consumption Max. 35 W
Dimensions (L×W×H) 470×110×220 mm
Weight 7 kg
