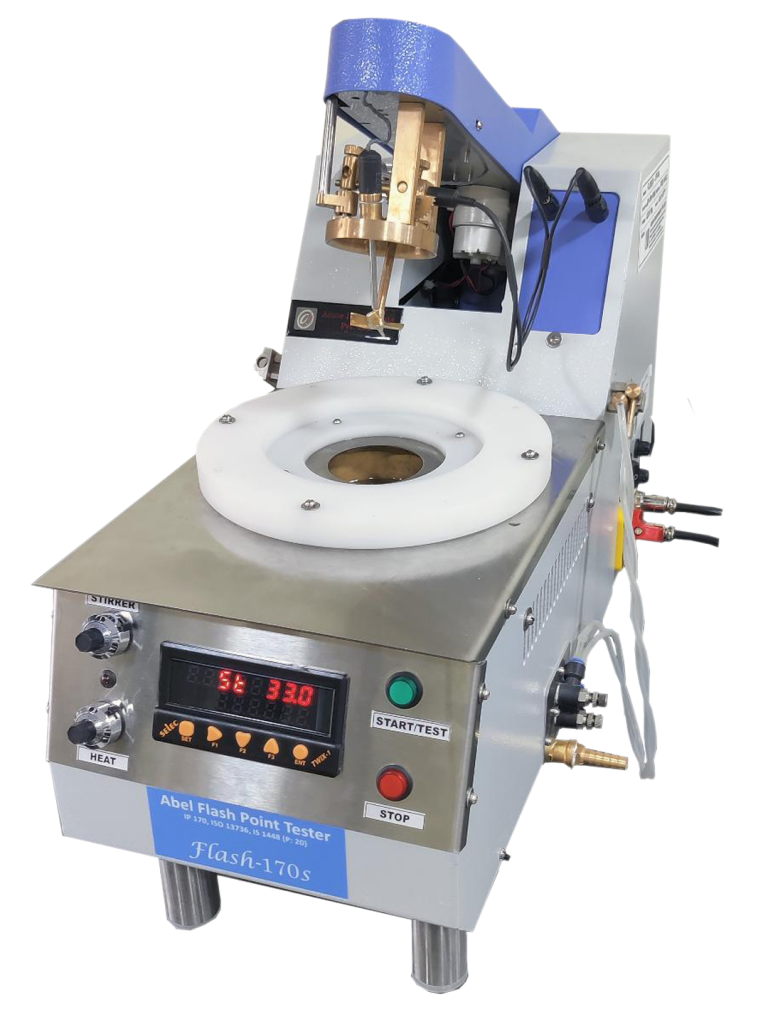

The Flash-170S is a semi-automated Abel Closed Cup Flash Point Tester designed for accurate determination of the flash point of combustible liquids. Operating within a temperature range of -30°C to 110°C, it adheres to international standards such as ISO 13736 and IP 170. Ideal for laboratories requiring precise flash point determination of flammable liquids, the Flash-170S combines automation with manual control for enhanced flexibility and safety.
| Specification | Details |
| Model | Flash-170S |
| Test Methods | ISO 13736, IP 170 |
| Temperature Range | -30°C to 110°C (with external refrigerated circulator) |
| Cooling System | Inbuilt air-cooled Peltier or external water circulator |
| Heating Control | Ten-turn potentiometer |
| Ignition Sources | Electric igniter (auto on/off), gas igniter (manual on/off) |
| Sample Temperature Indicator | Digital display with sample temperature, rate, and stirrer RPM |
| Automation | Automatic test operation with manual single-push test initiation |
| Dimensions (W x D x H) | 410 mm x 420 mm x 330 mm |
| Weight | 17 kg |
| Power Supply | 230V, 50Hz |
| Material | Stainless Steel |
| Ambient Temperature Range | 10°C to 35°C |
The objective is to cater to all verticals small & large scale industries by offering easy, simple & reliable instruments.
