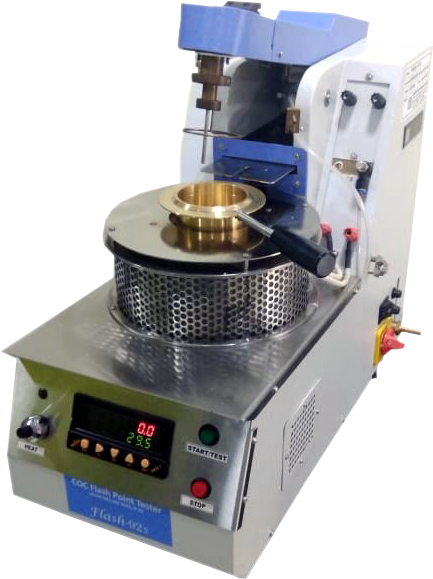

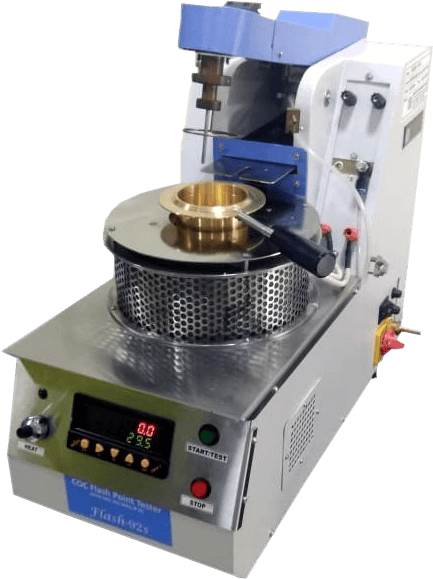

Semi-Automated Cleveland Open Cup Flash Point Tester – Flash 92s

The Flash-92s is a semi-automated Cleveland Open Cup Flash Point Tester designed to determine the flash point of combustible liquids with high accuracy and safety. Operating within a temperature range of +79°C to +400°C, it adheres to international standards such as ASTM D92, ISO 2592, IP 36, and GB/T 3536. This tester is ideal for laboratories requiring precise flash point determination of petroleum products, lubricating oils, bitumen, and edible oils.

Automatic Flash Detection: Automatically detects flash point and holds the reading for accurate results.
Inbuilt Centrifugal Cooling Blower: Efficient cooling system to quickly bring the sample temperature down post-test.
Dual Ignition Sources: Equipped with both electric and gas igniters for flexibility.
Digital Sample Temperature Indicator: Provides real-time temperature readings and sample temperature rate.
Permanently Fixed Lid Assembly: Includes sample temperature sensor, flash detector, and igniter for easy operation.
Automatic Test Operation: Features manual single push button for stirring, heating, igniting, dipping, and cooling control.
Auto Shutter Mechanism: Automatically covers the sample cup to prevent contamination.

Specification	Details
Model	Flash-92s
Test Methods	ASTM D92, ISO 2592, EN ISO 2592, IP 36, GB/T 3536
Temperature Range	+79°C to +400°C
Cooling System	Inbuilt centrifugal cooling blower
Ignition Sources	Electric and Gas igniters
Temperature Indicator	Digital display with sample temperature rate indication
Lid Assembly	Fixed with sensor, flash detector, and igniter
Test Operation	Automatic with manual override via single push button
Shutter Mechanism	Auto shutter to cover sample cup
Dimensions (W x D x H)	410 mm x 420 mm x 330 mm
Weight	16 kg
Power Supply	230V, 50Hz
Material	Stainless Steel
Ambient Temperature Range	10°C to 35°C
